Low Hydrogen Electrodes
AWS/ASME ClassE 7016
SPECIFICATIONSFA 5.1 IS 814 : EB 5324H2X
VJ 7016 is a basic-coated low-hydrogen electrode designed for welding restrained joints subjected to dynamic loading. The weld deposit is of radiographic quality, offering excellent resistance to hot cracking and superior notch toughness at sub-zero temperatures. It is particularly suitable for welding mild steel, medium and high tensile steels, low alloy steels, steel of unknown composition, and for machinable welds on cast iron. This electrode is commonly used in a variety of industries, including boilers, pressure vessels, heat exchangers, oil refineries, and chemical and food industries. It is also well-suited for applications in storage tanks, earthmoving equipment, railways, structural components such as cranes, tractors, rollers, shipbuilding, conveyor systems, and pipelines.
Mechanical Properties
YS (MPa) 450 N/mm²
UTS (MPa)570 N/mm²
El (%) 27%
Charpy V at -30°C (J)120 Joules
Chemical Composition
C 0.15% max
Mn1.60% max
Si 0.75% max
S 0.035% max
P0.035% max
AWS/ASME ClassE 7018
SPECIFICATION SFA 5.1 EB 5426H3JX
VJ 7018 is a heavy-coated low-hydrogen electrode with a high percentage of iron powder, designed for welding in all positions. It provides tough, crack-resistant welds on mild and low alloy steels. VJ 7018 deposits high-quality welds that radiographic Quality. The electrode is engineered for high deposition efficiency, exceeding 110%, and features a thin, easily detachable slag with an excellent bead profile & extremely smooth and stable arc, with excellent arc striking and re-striking characteristics. It is commonly applied in industries such as boilers, pressure vessels, atomic reactor shells, bridges, railway wagons and coaches, earth-moving equipment, pipelines, chemical industries, oil refineries
Mechanical Properties
YS (MPa) 450-510 N/mm²
UTS (MPa)510-580 N/mm²
El (%) 25-30%
Charpy V at -30°C (J)80-150 Joules
Chemical Composition
C 0.10% max
Mn0.80-1.60%
Si 0.60% max
S 0.30% max
P0.30% mах
AWS/ASME ClassE 7018-H4R
SPECIFICATION SFA 5.1

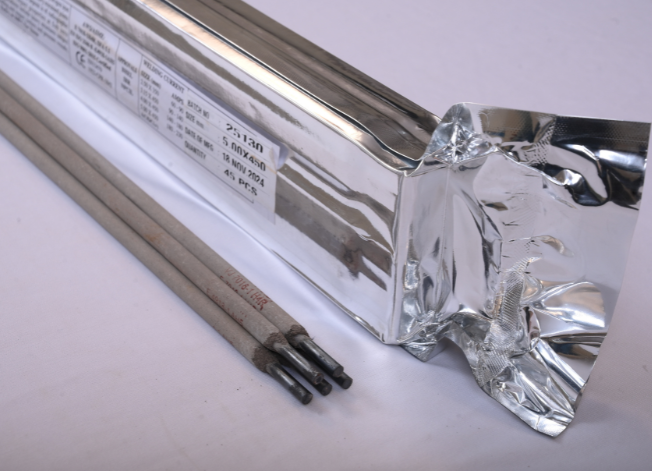

VJ 7018 H4R is a high-performance, moisture-resistant, hydrogen-controlled electrode. This heavy-coated, ironpowder electrode delivers 110% metal recovery, excellent mechanical properties, high ductility, crack resistance, and radiographic-quality welds—ideal for dynamic load applications. Vacuum-packed to eliminate redrying, it ensures clean, impurity-free welds with exceptional durability
Mechanical Properties
YS (MPa) 450-510 N/mm²
UTS (MPa)510-580 N/mm²
El (%) 25-30%
Charpy V at -30°C (J)80-150 Joules
Chemical Composition
C 0.10% max
Mn0.80-1.60% max
Si 0.60% max
S 0.030% max
P0.030% тах

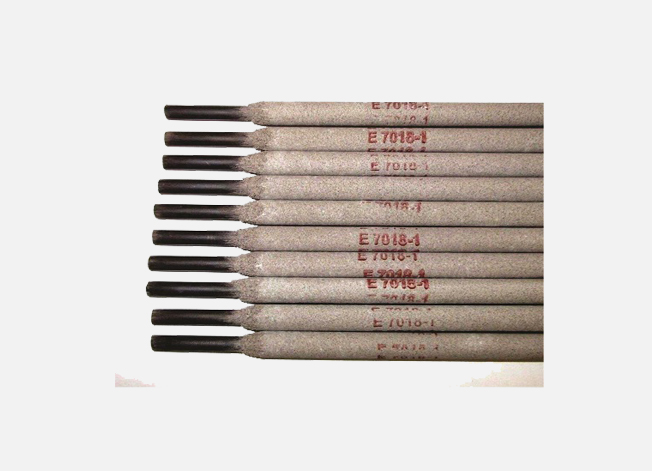

AWS/ASME ClassE 7018-1
SPECIFICATIONSFA 5.1 E7018-1
VJ 7018-1 is a high-quality electrode, providing high deposition rate. It provides excellent welding pool control, minimal spatter level, good arc strike and easy slag removal. Particularly suitable for welding high strength lowalloy steels. Weld deposit is of Radiogrpahic Quality with very Resistant to hot cracking and excellent Notch Toughness at sub zero temp.
Mechanical Properties
YS (MPa) 480 N/mm²
UTS (MPa)570 N/mm²
El (%) 29%
Charpy V at -45°C (J)110 Joules
Chemical Composition
C 0.10% max
Mn 1.0-1.60% max
Si 0.75% max
S 0.030% max
P0.030% max
AWS/ASME ClassE7018-1 H4R
SPECIFICATION SFA 5.1
VJ 7018-1 H4R is a high-performance, moisture-resistant electrode for critical applications. It delivers tough, ductile, radiographic-quality welds with 110% metal recovery and excellent crack resistance. Ideal for boilers, pressure vessels, and dynamic load structures, it performs reliably in all positions, including sour gas environments. Vacuum-packed to eliminate redrying, it ensures durability and superior weld quality.
Mechanical Properties
YS (MPa) 450 N/mm²
UTS (MPa)560 N/mm²
El (%)28%
Charpy V at -45°C (J)120 Joules
Chemical Composition
C 0.10% max
Mn 1.40% max
Si 0.40 max
S 0.030% max
P0.030% max
